Sigenergy

Sigenergy EV Chargers

Sigenergy makes two home chargers and we install both. The Sigen EV AC Charger goes on the wall like any other charger. The DC charging module stacks into a SigenStor battery and charges the car on DC, straight from the system. Either way, the car runs in the mySigen app with your solar and battery.

7, 11 or 22 kW AC / 12.5 or 25 kW DCType 2 (AC) / CCS2 (DC)3-year Sigenergy warranty
One Sigenergy system

Charger, SigenStor and app on the same team

Both chargers are built to work with a SigenStor, Sigenergy's battery and hybrid inverter in one stack. With a SigenStor at home, the wall charger can fill the car on solar the house isn't using, let the home battery help until it drops to a level you set, or go flat out at up to 22 kW from solar, grid and battery together. In Sigen AI Mode it puts your own solar first, and on a dynamic tariff it charges when power is cheap and stops when it's dear.

The DC charging module works differently. It slots into the SigenStor stack like another block, alongside the Sigen Energy Controller, and charges the car through a CCS2 plug at 12.5 or 25 kW. Sigenergy built it on the DC side of the system, so solar can go into the car directly.

Both show up in mySigen, the same app as your solar and battery. Start a charge, set a schedule or change modes, and see what the car has used next to the rest of the house.

The smart charging modes need a SigenStor, and load management (backing the charger off when the house is busy) needs a Sigen Power Sensor at the switchboard. The DC module only works inside a SigenStor, and with it fitted a stack holds up to 45 kWh of battery instead of 54. Sigenergy builds the DC module to send power back from the car too, but says that depends on the car and on standards still being published, so we don't sell it as a feature yet.

Sigenergy logo

How the pieces fit

  1. Sigen Energy Controller

    The hybrid inverter that runs your solar

  2. SigenStor battery

    Can help charge the car, until it drops to a level you set

  3. AC wall charger or DC module

    Solar only, battery boost, fast or scheduled

  4. mySigen

    Solar, battery and car in one app

Key Features

Models: Sigen EV AC Charger 7, 11 and 22 kW; SigenStor EVDC 12 and EVDC 25 (DC charging module)

  • Sigen EV AC Charger: 7 kW single phase, or 11 or 22 kW three phase, with a 5 m Type 2 cable or a Type 2 socket
  • Solar only, battery boost, fast and scheduled charging with a SigenStor, plus Sigen AI Mode for dynamic tariffs
  • With a Sigen Power Sensor: load management, switching between three and single phase, and solar charging alongside another brand's inverter
  • DC charging module: 12.5 or 25 kW through a CCS2 plug on a 5, 7.5 or 10 m cable, stacked into a SigenStor
  • With the DC module fitted, a SigenStor holds up to 45 kWh of battery (Clean Energy Council approved list)
  • Start a charge from mySigen, with an RFID card or just by plugging in
  • Wall charger IP65 with IK10 glass; DC module IP66
  • OCPP 1.6J on both
  • 3-year Sigenergy warranty on the wall charger and on the DC module in Australia (the SigenStor battery and energy controller have 10)

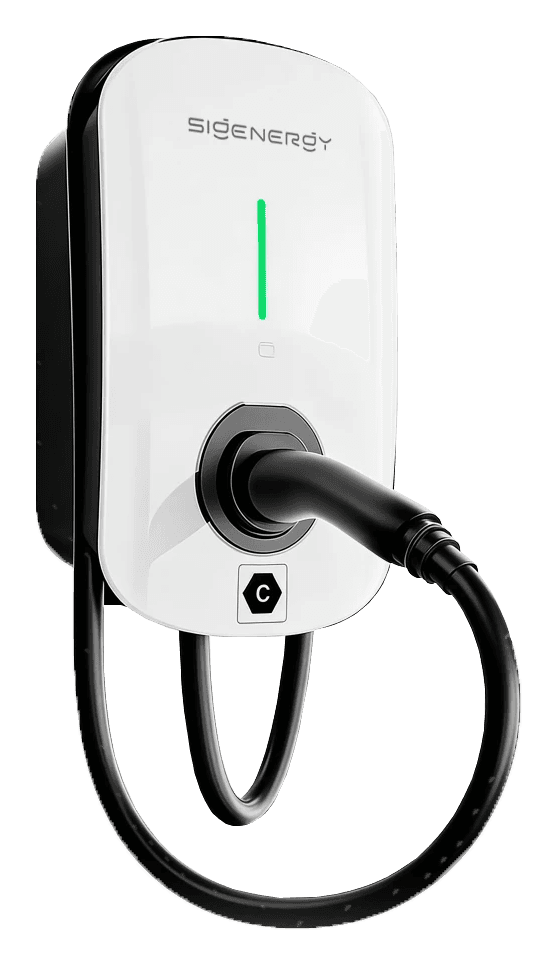

Sigen EV AC Charger, a white wall charger with a green light strip and its tethered Type 2 cable plugged into the front

Datasheet & warranty

Interested in the Sigenergy EV Chargers?

Get a quote for installation, standalone or bundled with solar and battery.

Get a Free Quote
