UV Power

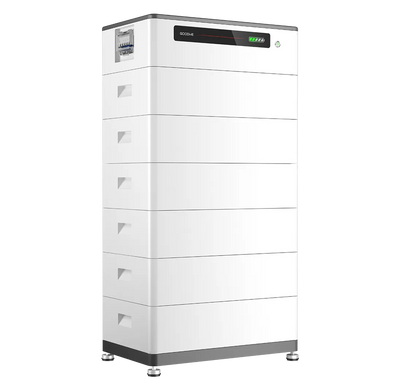

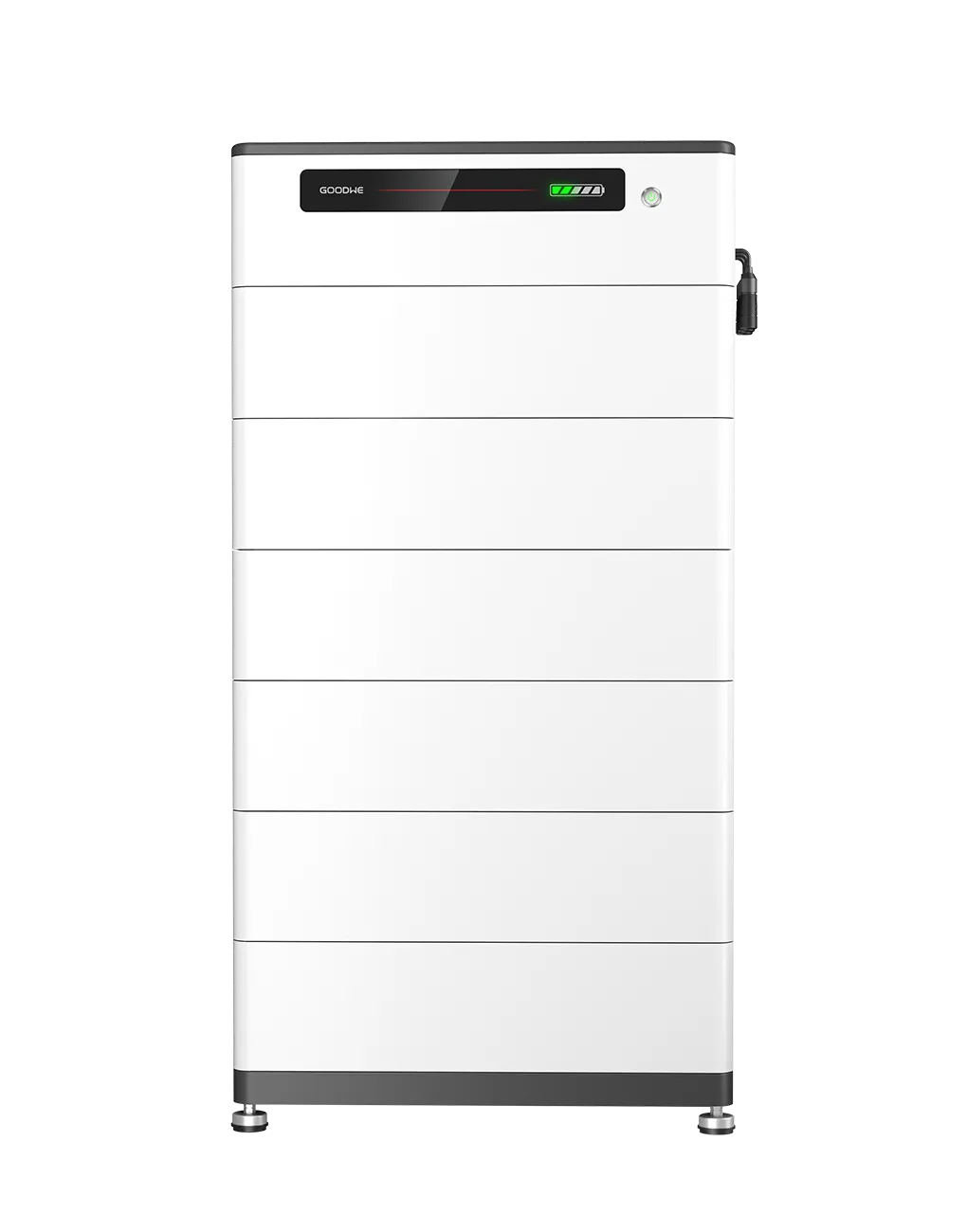

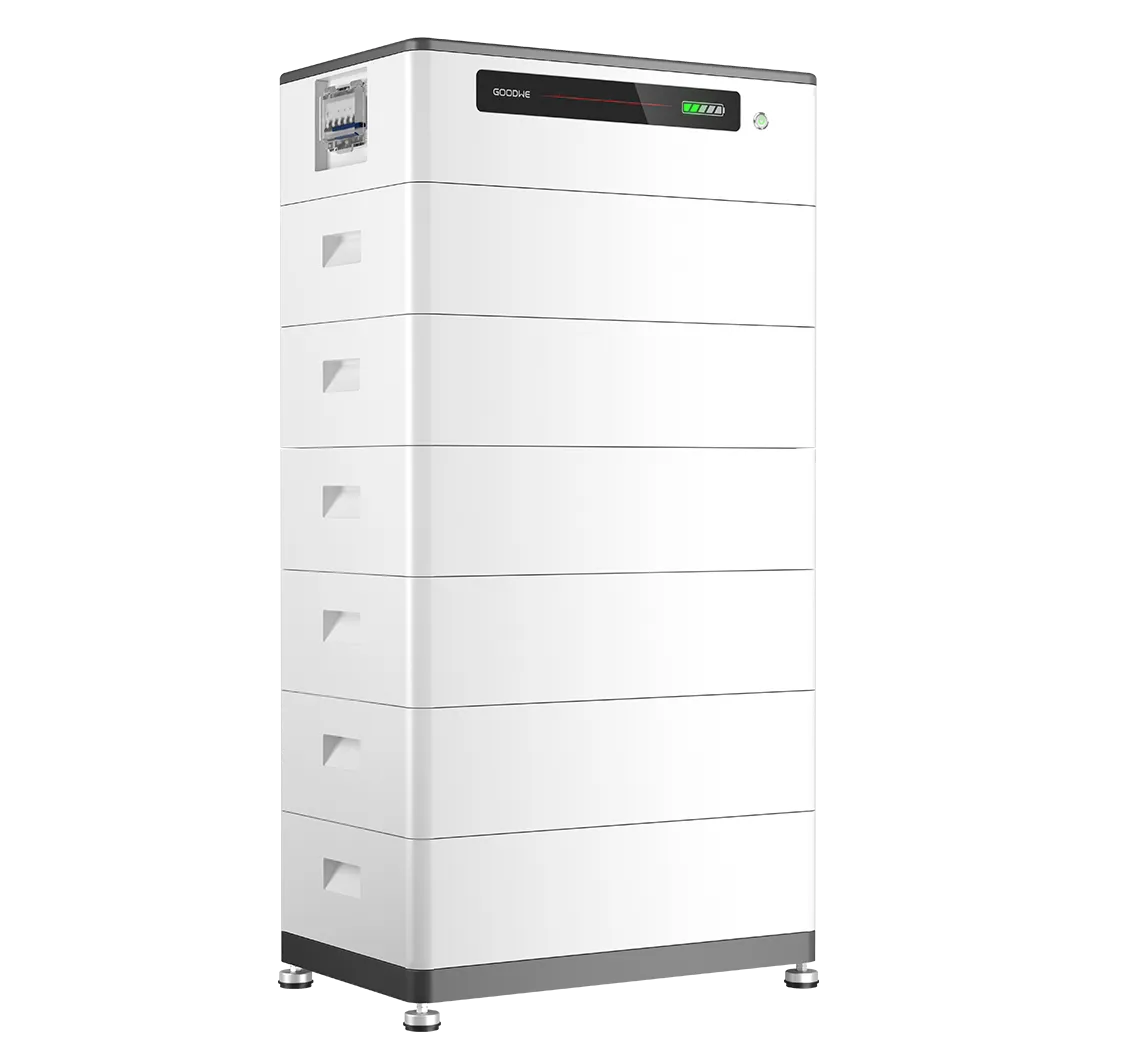

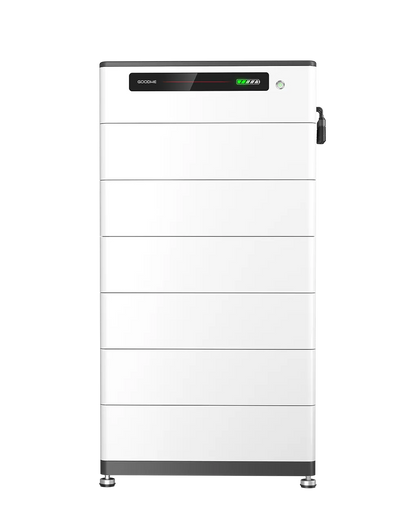

GoodWe Lynx F G2 Series 12.8kWh Battery

GoodWe Lynx F G2 Series 12.8kWh Battery

Regular price $10,500.00 AUD
Regular price Sale price $10,500.00 AUD
Sale Sold out
Shipping calculated at checkout.

GoodWe Hybrid Battery-Ready Inverters and Lynx F G2 Series Batteries

GoodWe is a reputable and well-established company known for its extensive range of Hybrid battery-ready inverters. The Lynx F G2 series batteries are designed to seamlessly integrate with GoodWe inverters, offering the advantage of shared software and effortless compatibility between the battery and inverter.

Key Features of GoodWe Lynx F G2 Series Batteries

  • Each module provides 3.27 kWh, allowing for easy and cost-effective expansion by adding extra modules.
  • The capacity range of the Lynx F G2 Series is from 9.6 kWh to 28.8 kWh, with the option to expand through parallel connection of up to 8 towers, making it suitable for various system sizes, from residential homes to commercial properties.

Easy Installation and Maintenance

  • The stackable self-detecting modules make installation and maintenance of the system straightforward.
  • The use of reliable lithium iron phosphate (LFP) battery cell technology ensures maximum safety and a longer life cycle.

Smart Control & Monitoring

  • Remote diagnosis and updates via the inverter.
  • Auto reboot after under-voltage for enhanced system reliability.

Safety, Reliability, and Thoughtful Design

  • Reliable LFP technology with high cycle stability.
  • IP55 protection for outdoor and indoor installation safety.
  • Stackable auto-recognition modules and plug & play wiring contribute to user-friendly and thoughtful design.

Flexible & Adaptable Applications

  • The system offers flexible capacity and stackable modules.
  • It supports up to 8 towers in parallel, providing a total capacity of 230 kWh, making it suitable for a wide range of applications.

Prices and Installation

  • Prices for products are indicative and subject to change based on various factors, including installation requirements.
  • Installation costs can significantly impact the final price of a product or service.
  • Factors such as labour, materials, permits, and additional services can influence the overall cost.
  • It's essential to consider installation expenses when budgeting for a purchase.
  • Seek detailed quotes from professionals to accurately assess the total cost, including installation.

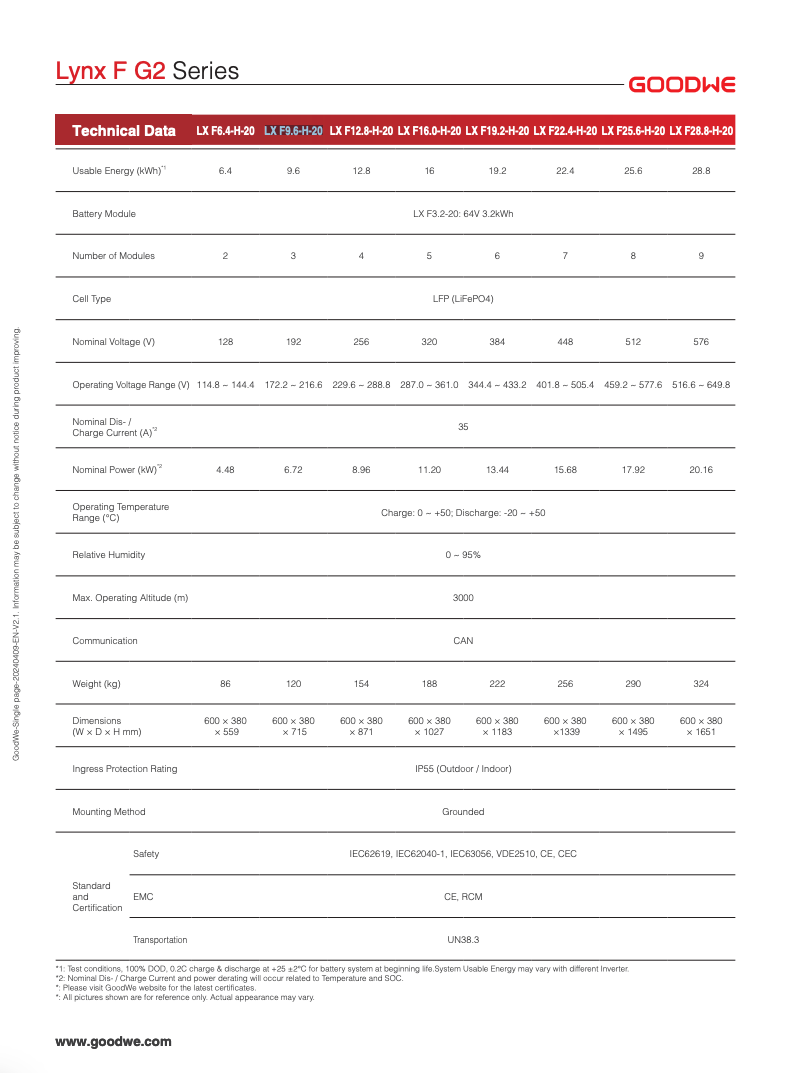

Technical specifications

Module Model
LX F12.8-H-20
Energy capacity
12.8kWh
Usable capacity
12.8Wh
Width
600mm
Height
871mm
Depth
380mm
Weight
154kg
Degree of protection

IP55

Country of Manufacturer

China

Australian after sales care

Yes

Temperature range

-20 to 50 degrees celsius

Warranty

10 years



About GoodWe



Documentation

GoodWe Lynx F G2 Series 12.8kWh Battery | Data Sheet

GoodWe Lynx F G2 Series 12.8kWh Battery | Installation Information

GoodWe Lynx F G2 Series 12.8kWh Battery | Warranty Information
